For Yamaha Rhino 660 YXR660F 2004-2007 / Grizzly 660 YFM660F 2002-2008 Wet Clutch Kit

  • Sale
  • $13.00
  • Regular price $20.00
Shipping calculated at checkout.


  • Fit for:
    Yamaha Rhino 660 2004-2007;
    Yamaha Grizzly 660 2002-2008.

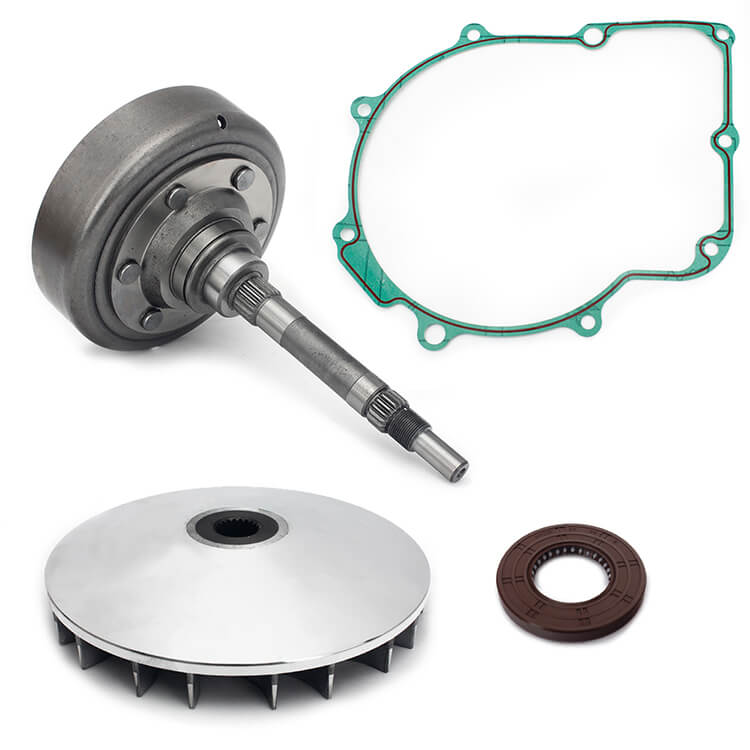

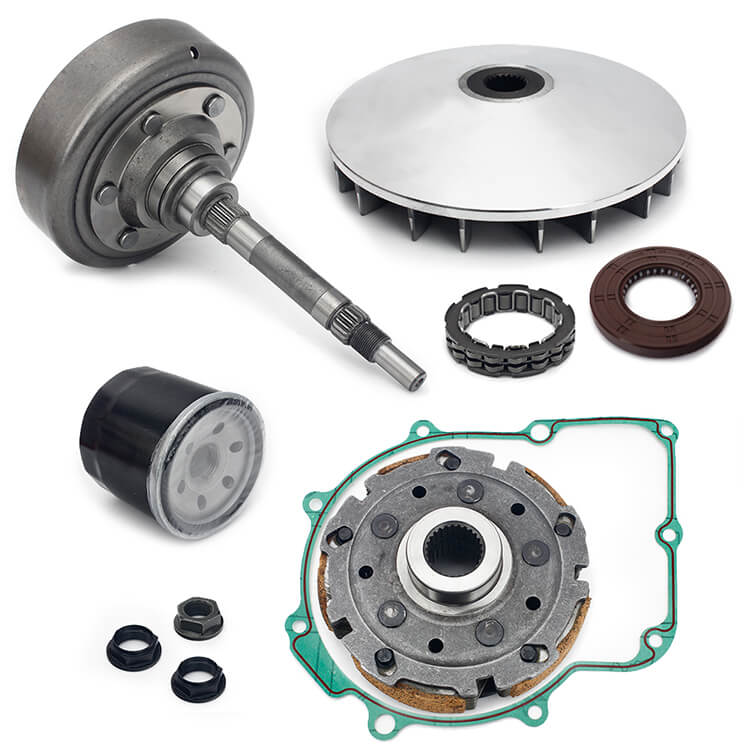

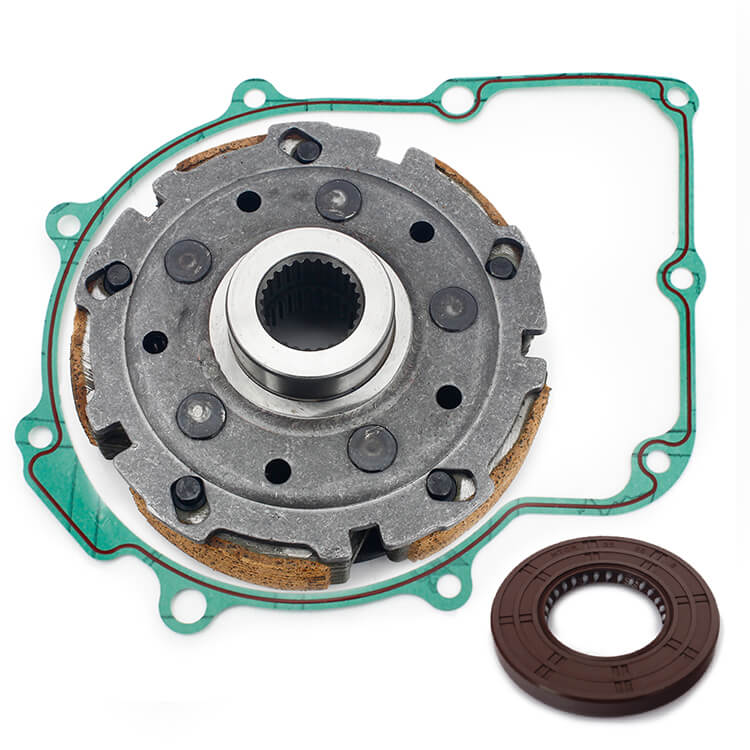

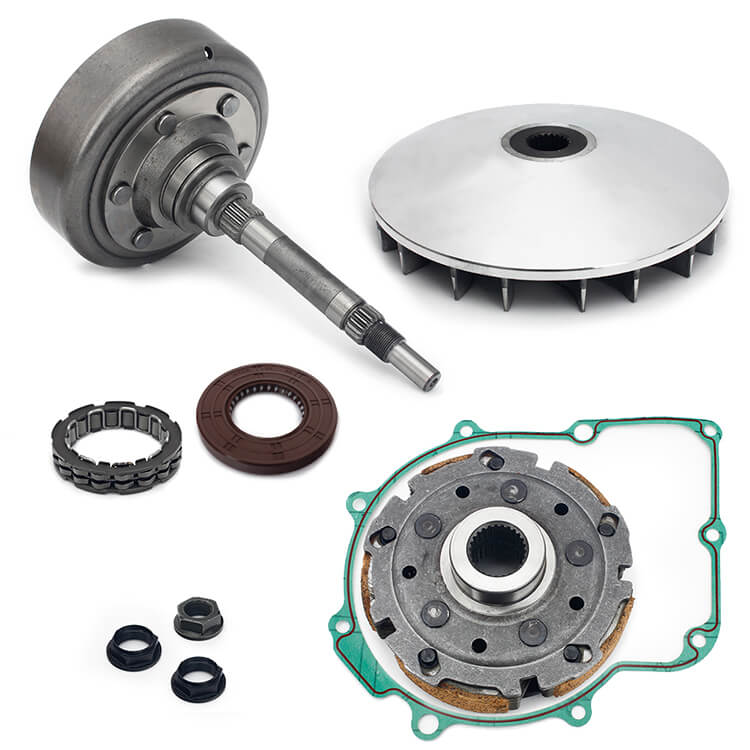

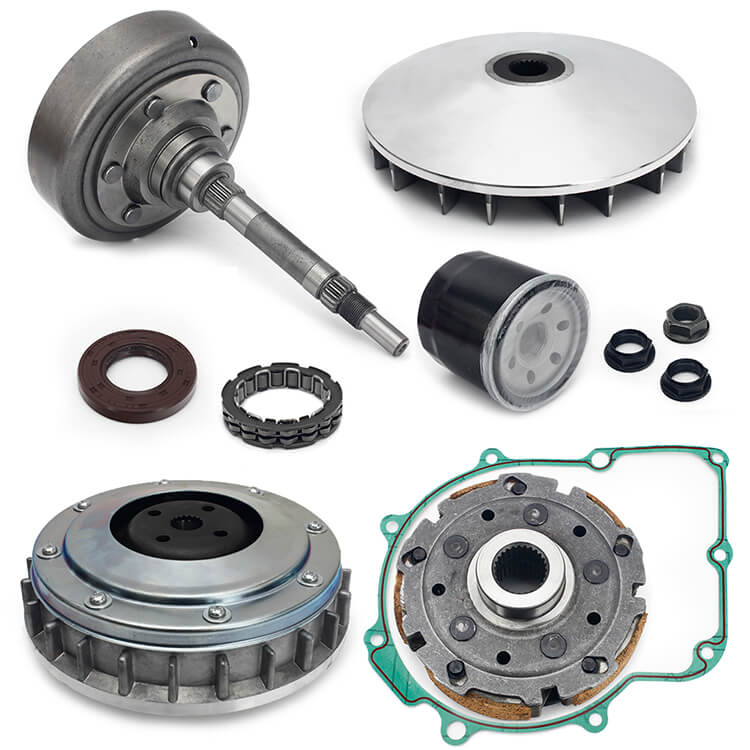

  • Includes:

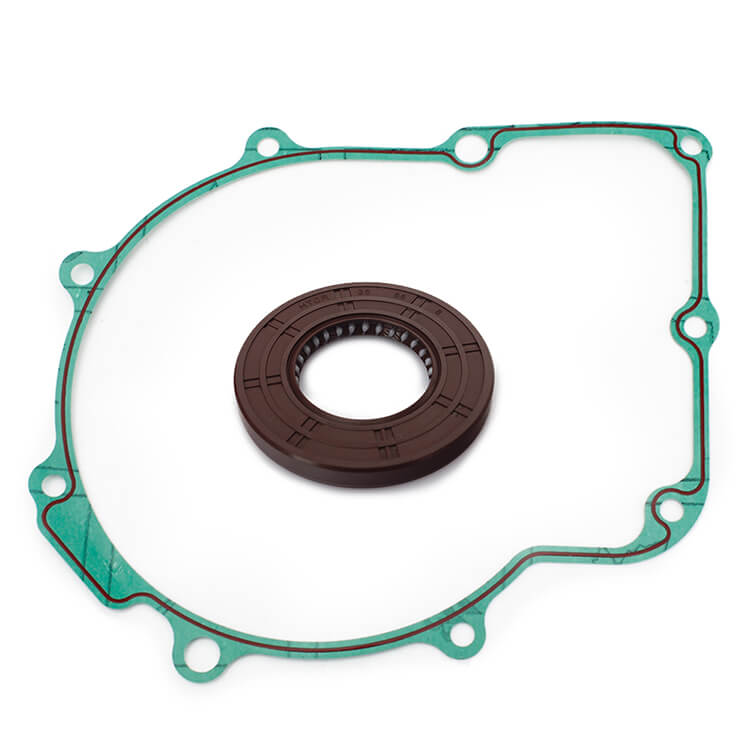

    Kit1: clutch gasket + oil seal

    Kit2: clutch cover gasket + pad shoe + oil seal

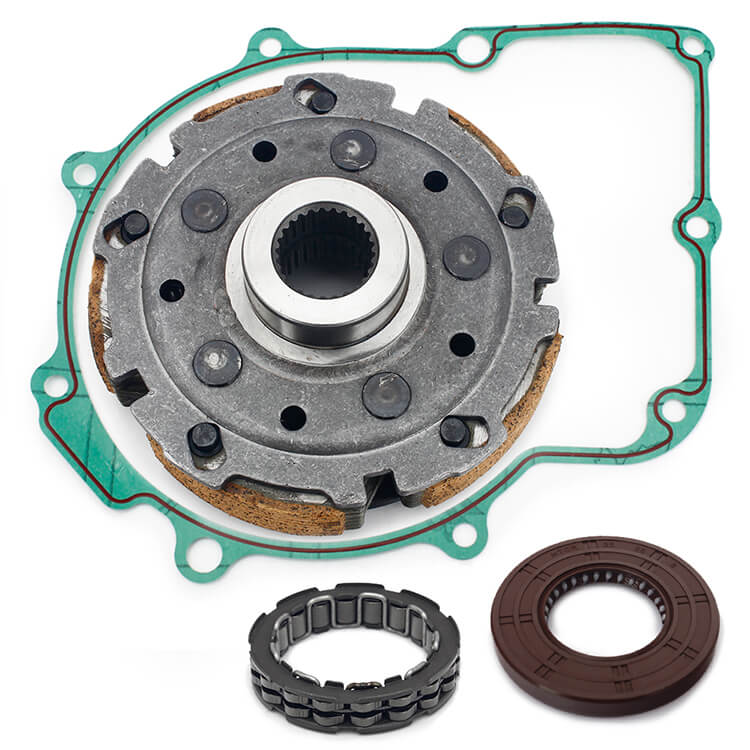

    Kit3: clutch cover gasket + pad shoe + oil seal + one way bearing

    Kit4: clutch cover drum housing + clutch primary fixed sheave + clutch cover gasket + oil seal

    Kit5: wet clutch pad shoe + clutch primary fixed sheave + clutch cover housing + bearing + gasket + flange nuts + oil seal

    Kit6: clutch primary fixed sheave + clutch cover housing + pad shoe + bearing + gasket + flange nut + oil seal + oil filter

    Kit7: clutch primary fixed sheave + primary dry clutch cvt sheave assy + clutch cover housing + pad shoe + bearing + gasket + flange nut + oil seal + oil filter

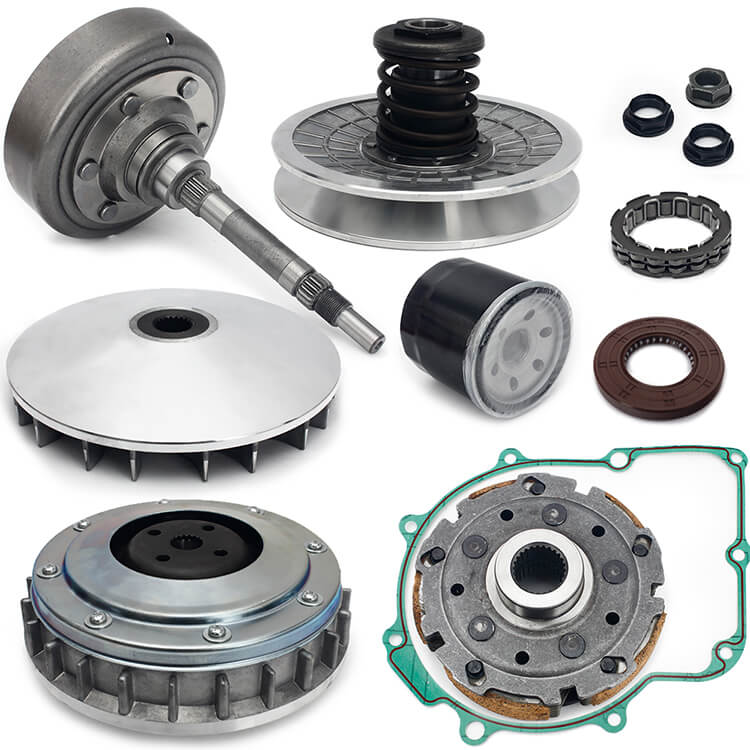

    Kit8: clutch primary fixed sheave + primary dry clutch cvt sheave assy + secondary driven clutch cvt pulley + housing + pad shoe + bearing + gasket + flange nut + oil seal + oil filter
  • Replaces OEM Number:
    Primary Dry Clutch: 5UG-17620-00-00;
    Clutch Cover Housing: 5KM-16611-10-00;
    Wet Clutch Pad Shoe: 5KM-16620-00-00;
    Wet Clutch Cover Gasket: 5KM-15463-00;
    Oil Seal: 5KM-17619-00-01, 93102-35004-00;
    One Way Bearing: 4SH-16664-00-00;
    Clutch Flange Nut: 90179-22005-00, 90179-16001-00;
    Oil Filter: 5 GH-13440-70-00.
  • Primary clutch material: aluminum, steel;
    Secondary driven clutch CVT pulley material: aluminum, steel;
    Clutch cover housing material: high carbon steel;
    Clutch primary fixed sheave material: aluminum, steel;
    Wet clutch pad shoe material: high carbon steel;
    One way bearing material: bearing steel;
    Clutch flange nut material: high carbon steel;
    Clutch cover gasket material: rubber, leather, paper;
    Wet clutch oil seal material: chemigum.
  • Meet or exceed original equipment specifications
  • All the products approved in great performance.
  • Easy to install, direct replacement.
  • Kit 2 3 5 6 7 8 only can be shipped to US now!
